Real Tend Normally Open Inductive Proximity Detector AC 90-250V Square Type Switch for Metal Detection, Detecting Distance 10mm., O-Cross SCR Output Operating Stable with 1 Year Warranty

Product Code :
RL/TPS10A1

Brand :
TEND

In Stock

Description

Type: Proximity Detector Switch – Normally Open

Rated Voltage: 90-250 VAC

Current Consumption: 2mA max

Load Current: 3-200 mA

Residual Voltage: 7V max

Ambient Temperature: Operating: -20 to70℃

Detecting Distance: 10mm.

Standard Detectable Object: Iron 30x30 xlt

Response Frequency: 20Hz

The Variation Due to the Variation of Operating Voltage: DC Type: ±1%

Enclosure Rating: IP67

Cable Length: 2N

Material: ABS

Brand: Real Tend

Country of Origin: Taiwan

Features:

Economic price
Wide operating voltage range: 2 wire 90-250 VAC.
With operating indicator LED.
May drive 150 mA loads directly.
AC types are O-cross SCR output, operating stable.
The lowest residual voltage.

Now:
AED 291.00
Inclusive of VAT

Quantity:

Wishlist

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 37.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Overview
Specifications
Reviews

Highlights

Real Tend Normally Open Inductive Proximity Detector AC 90-250V Square Type Switch for Metal Detection, Detecting Distance 10mm., O-Cross SCR Output Operating Stable with 1 Year Warranty.

Product_spec
TYPE	PROXIMITY SWITCH AC NORMALY OPEN
VOLTAGE(V)	90-250VAC
CURRENT(A)	3-200MA
BRAND NAME	REAL TEND
FAMILY NAME	TPS10A1

Measurements

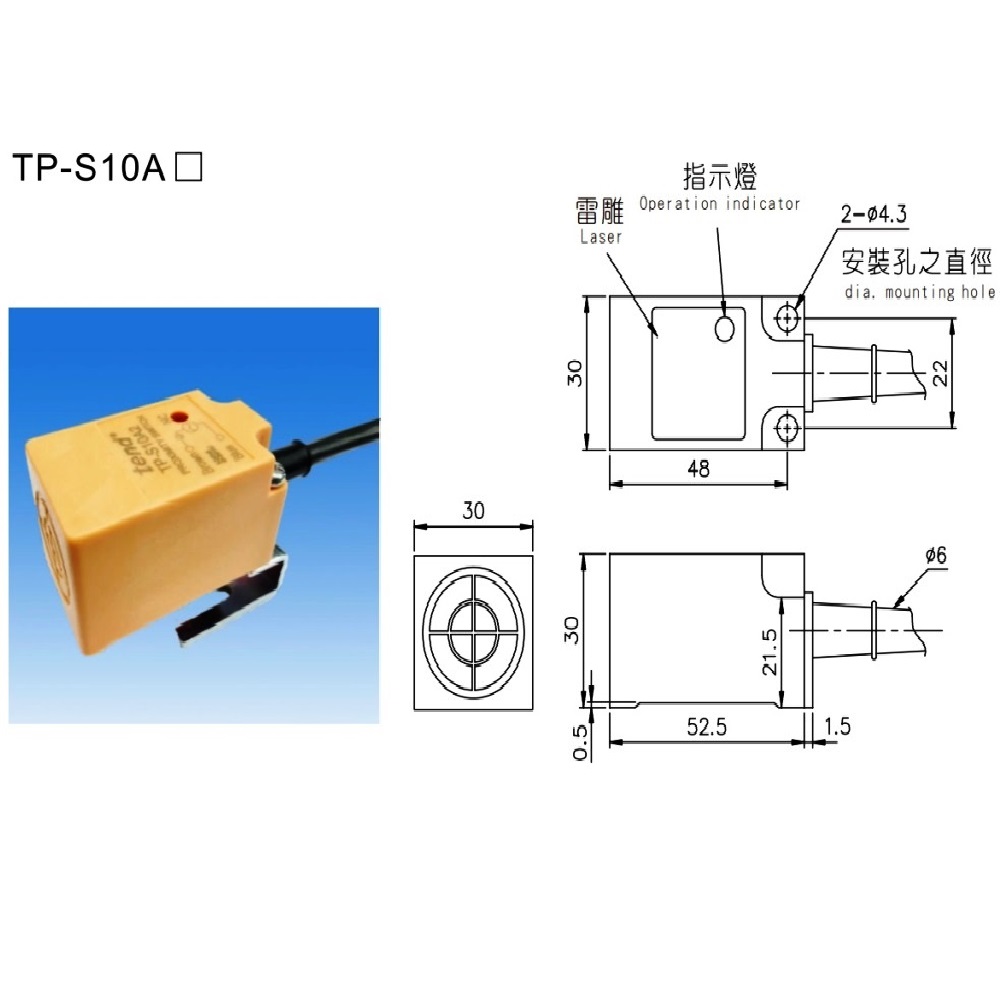

DIMENSIONS [mm]	H=50 x W=30
