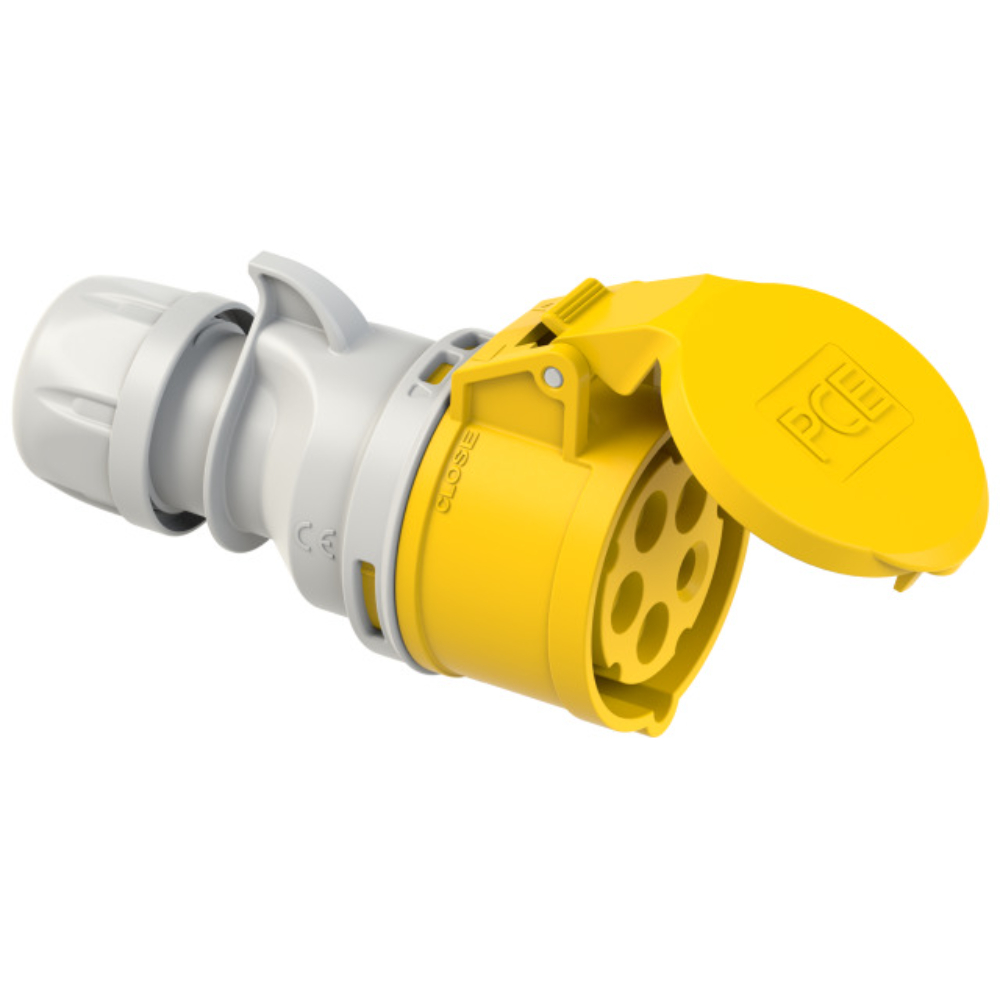

PCE 5 Poles 4h 32A 110V Connector IP44, Dimensions: 168 x 99mm.

Name: PCE 5 Poles 4h 32A 110V Connector IP44, Dimensions: 168 x 99mm.
SKU: PC/225-4
Rating: 0.0 (0 reviews)

Product Code :
PC/225-4

Brand :
PCE

In Stock

Description

Type: Connector (Shark)

Rated Current (A): 32

Voltage (V): 110

No. of Poles: 5 (3P+N+PE)

Clock-Position: 6h

Degree of Protection: IP44

Frequency (Hz): 50/60

Contacts: Brass

Connection Technology: Screw Terminals

Angle of Plug: Straight

Cable Entry: Gland Nut

Contact Material: CuZn

Identification Color: Yellow

Material: Plastic

Warranty: 1 Year

Brand: PCE

Country of Origin: Austria

Now:
AED 45.00
Inclusive of VAT

Quantity:

Wishlist

PCE 5 Poles 4h 32A 110V Connector IP44, Dimensions: 168 x 99mm.

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 25.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Overview
Specifications
Reviews

Highlights

PCE Yellow 5 Poles 4h 32A 110V Connector IP44, Dimensions: 168 x 99mm. 1 Year Warranty.

Product_spec
TYPE	INDUSTRIAL SOCKET
CHARACTER	MOBILE TYPE
VOLTAGE(V)	110
CURRENT(A)	32
FREQUENCY (Hz)	50/60
POLES	5
DESC1	FEMALE
DESC2	CONNECTOR
DESC3	4H
BRAND NAME	PCE

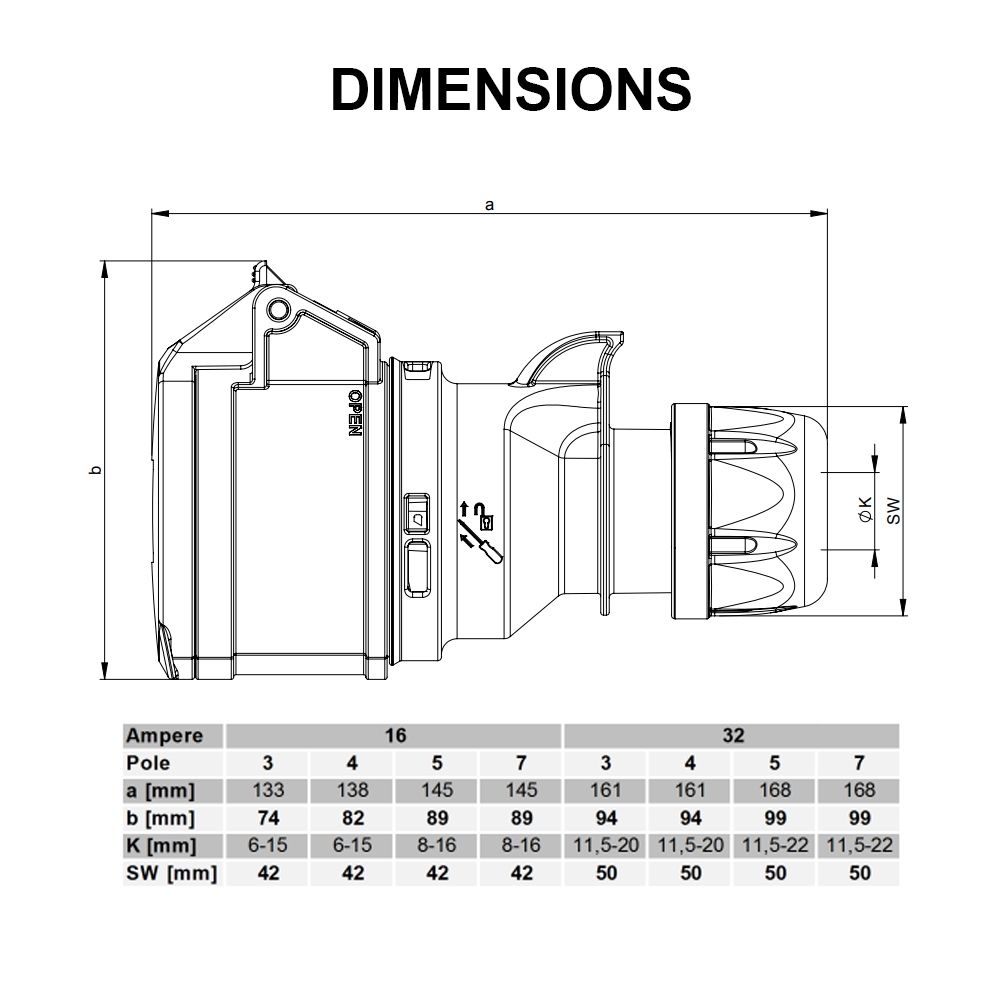

Measurements
DIMENSIONS [mm]	168 x 99
NET WEIGHT PER PIECE [kg]	0.270
