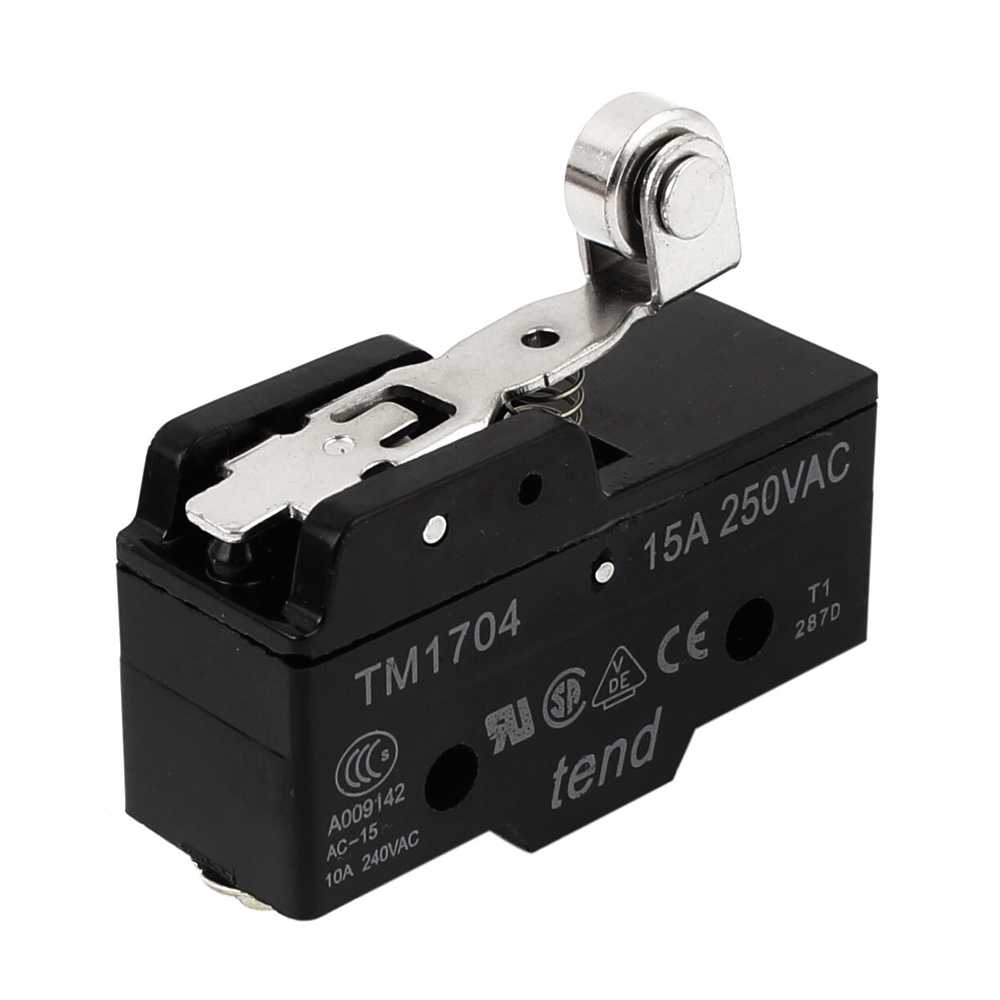

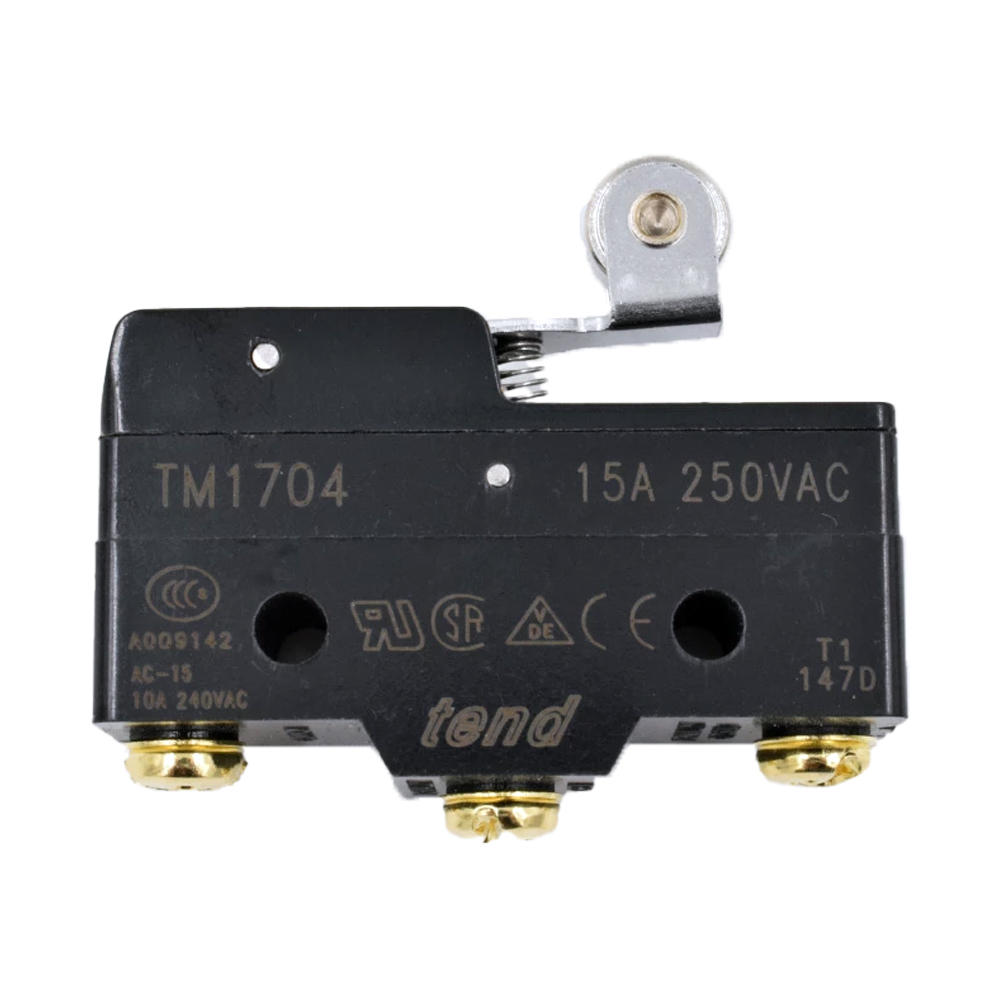

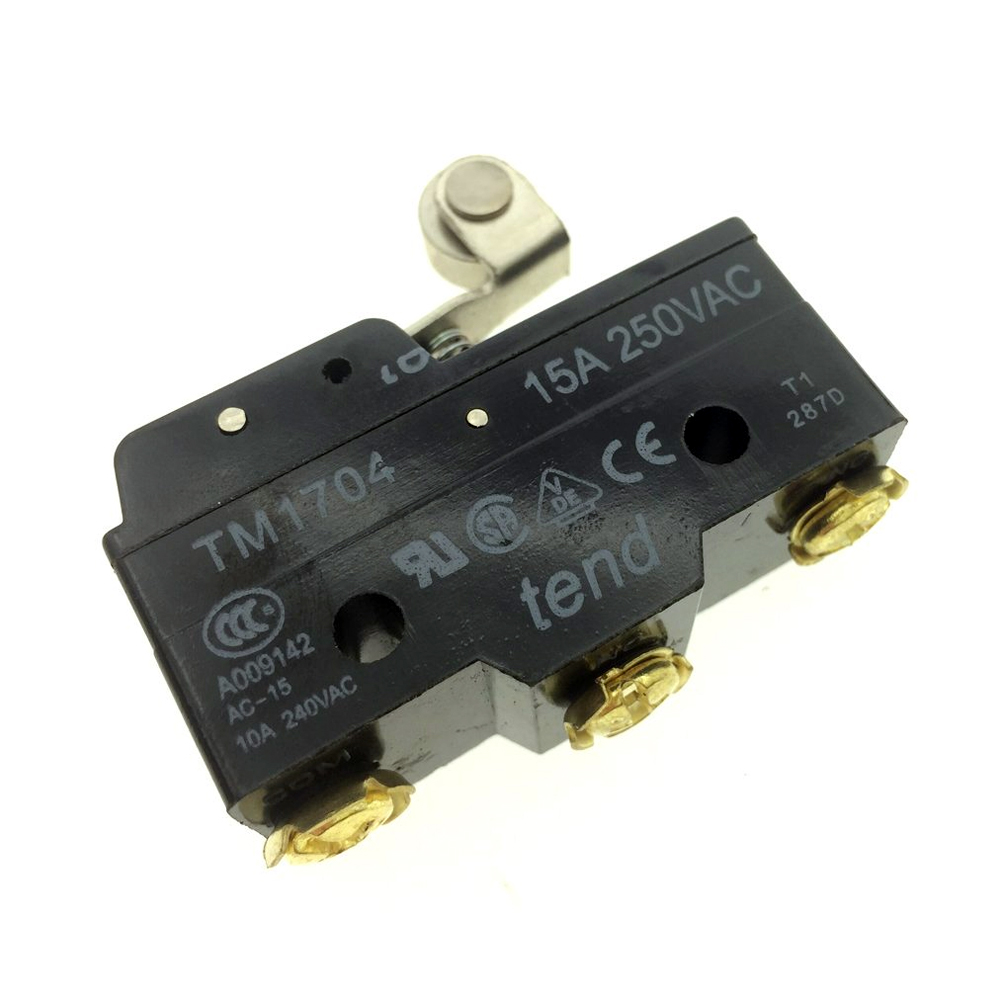

Real Tend 15A 250VAC Micro Switch with 1 Year Warranty

Name: Real Tend 15A 250VAC Micro Switch with 1 Year Warranty
SKU: RL/TM1704
Rating: 0.0 (0 reviews)

Product Code :
RL/TM1704

Brand :
TEND

In Stock

Description

Type: Micro Switch

Current (A): 15

Rated Voltage (V): 250AC

Operating Speed: 0.01 mm to 1 m/sec

Operating Frequency (Mechanically/Electrically): 240 Operations/min / 20 operations/min

Contact Resistance: 15 mΩ max. (initial)

Insulation Resistance: 100 mΩ min. (at 500 V DC)

Vibration (Mechanically Durability): 10 to 55 Hz 1.5 mm double amplitude

Ambient Operating Temperature (General Purpose/Sealed): -25° to +80°C / -15° to 80°C

Humidity (General Purpose/Sealed): 85% RH max / 95% RH

Service Life (Mechanically/Electrically): 20,000,000 Operations min / 500,000 operations min.

Shock:

Mechanically Durability: Approx. 1,000 m/sec2 (approx. 100 G's)
Malfunction Durability: Approx. 300 m/sec2 (approx. 30G's)

Dielectric Strength:

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,000 VAC, 50/60 Hz for 1 minute between current carrying part and ground

Brand: Real Tend

Country of Origin: Taiwan

Features:

Wide variety of actuators.
High breaking capacity (15A).
High precision.
Wide operating speed range.

Characteristic Operation:

Operating Force Max.: 160 g

Releasing Force Min: 42 g

Pre-Travel Max: 2.7 mm

Over-Travel Min: 2.4 mm

Movement Differential Max: 0.5 mm

Free Position Max.: 32.5 mm

Operating Position: 30.2 ±0.4 mm

Notes:

Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec (DC).
Lamp load has an inrush current of 10 times the steady-state current. While motor load has an inrush current of 6 times the steady-state current.

Now:
AED 52.00
Inclusive of VAT

Quantity:

Wishlist

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 25.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Product_spec

TYPE

MICRO SWITCH

CURRENT(A)

VOLT(AC)

250

FREQ(HZ)

50-60

BRAND NAME

REAL TEND

FAMILY NAME

Measurements

WEIGHT PER (KG)

22 TO 58G
